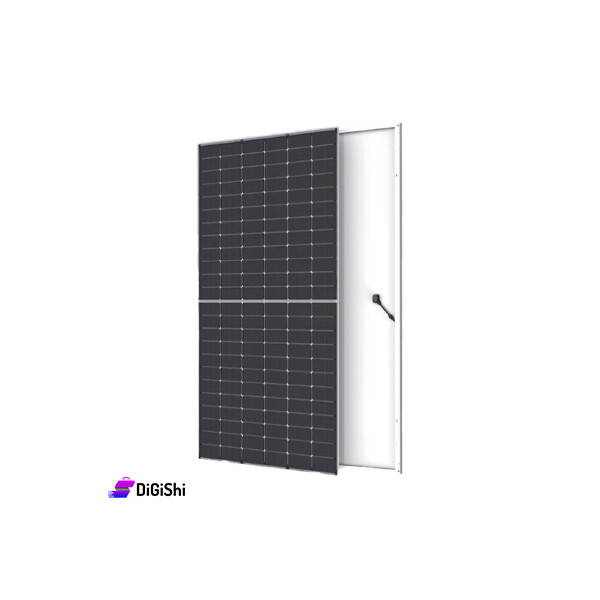

Solar Panel TRIVIEW Brand N-Type with 580 watt

solar panel

Brand: TRIVIEW

Model: TR-PVM550BI

mechanical specifications

cell type: N-TYPE

cell dimensions: 182*182 mm

cell arrangement: 144(6*24)

weight: 28kg

module dimensions: 227*113*3.5

cable length: vertical 300mm، Horizontal 1200 mm

cable cross section size: TUV:4mm2/UL:12AWG

front glass: coating tempareture glass 3.2 mm

N. of Bypass diodes: 3/6

frame: anodizesaluminium alloey

junction box: Completely protected from dust ingress

electrical specifications

testing condition: STC, NMOT

rated output pmp/wp: 580, 436

maximum power voltage: 42.6, 38.9

maximum power current: 13.62, 10.93

open circuit voltage: 51.5, 48.9

short circuit current: 14.37, 11.60

module efficiency: 22.5%

power tolerance: 0~+5

maximum ratings

maximum system voltage: 1500V DC (IEC)

operating temperature: -40°C~+85°C

maximum series fuse: 25A

static loading: snowloading 5400pa/ wind loading 2400pa

conductivity at ground: ≤0.1 Ω

safety class: Ⅱ

resistance: 100M Ω

A solar panel, with great mechanical and electrical specifications, so you can run the electricity in your home based on solar energy instead of waiting for electricity

Solar cells absorb sunlight and convert it into electrical energy

It is a clean, renewable energy source that helps reduce harmful carbon emissions to the environment, and it also lasts for a long time

DiGiShi quarantees the quality of this products and it is secured from the approved source in the local markets in Syria
