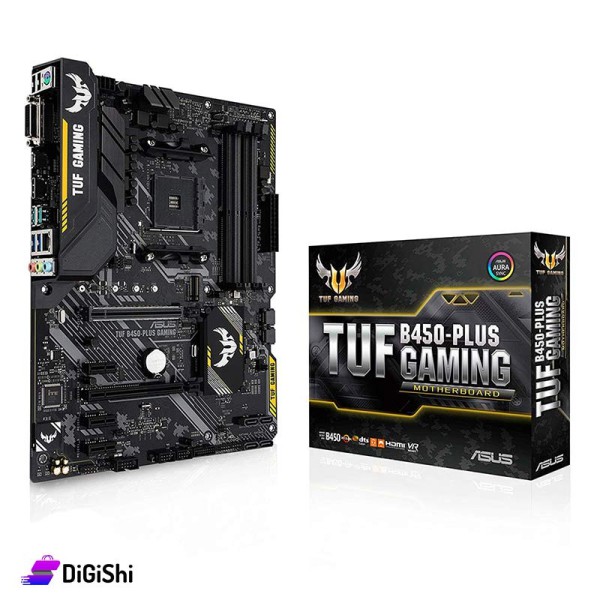

MOTHERBOARD AMD ASUS TUF B450 PLUS

Brand: ASUS

Model: TUF B450 PLUS

CPU: AMD AM4 Socket for 3rd/2nd/1st AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors

Chipset: AMD B450

Memory: 4 x DIMM, Max. 64GB, DDR4 3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory

Dual Channel Memory Architecture

ECC Memory (ECC mode) support varies by CPU.

Graphic:

Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors

Multi-VGA output support : HDMI/DVI-D ports

Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz

Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

Expansion Slots: 1 x PCIe 3.0/2.0 x16 (x16 mode)

1 x PCIe 3.0/2.0 x16 (x8 mode)

1 x PCIe 3.0/2.0 x16 (x4 mode)

1 x PCIe 2.0 x16 (max at x4 mode) 3 x PCIe 2.0 x1

Storage:

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1

2 x SATA 6Gb/s port(s) Support Raid 0, 1, 10

4 x SATA 6Gb/s port(s) Support Raid 0, 1, 10

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*1

LAN: Realtek® RTL8111H

Audio: Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *2

- Supports : Jack-detection, Front Panel Jack-retasking

Audio Feature:

- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio

- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

USB Ports:

2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A)

1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-CTM)

2 x USB 3.1 Gen 1 port(s) (2 at mid-board)

6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)

Operating System Support: Windows 10

Windows 8.1

Windows 7 *4

Back I/O Ports:

1 x PS/2 keyboard/mouse combo port(s)

1 x DVI-D

1 x HDMI

1 x LAN (RJ45) port(s)

1 x 5Gb/s port(s) USB Type-CTM

2 x USB 3.1 Gen 1 (blue) Type-A

Internal I/O Ports:

1 x Aura RGB Strip Header

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

3 x Chassis Fan connector(s) (3 x 4 -pin)

1 x AIO_PUMP connector (1 x 4 -pin)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s)

1 x Clear CMOS jumper(s)
