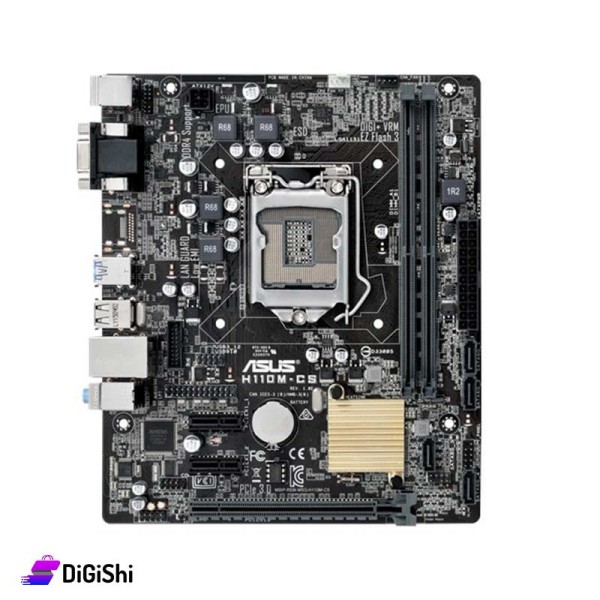

MOTHER BOARD ASUS H110M-D

Brand: ASUS

Model: ATX H110M-CS

CPU: Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0

The Intel® Turbo Boost Technology 2.0 support depends on the CPU types

Chipset: Intel® H110

Memory: 2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory *1

Supports Intel® Extreme Memory Profile (XMP)

Hyper DIMM support is subject to the physical characteristics of individual CPUs

The maximum memory frequency supported varies by processor

Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel

processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz

Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors

will run at the maximum transfer rate of DDR4 2133MHz

Graphic:

Integrated Graphics Processor- Intel® HD Graphics support

VGA output support : RGB port

Supports RGB with max. resolution 1920 x 1200 @ 60 Hz

Maximum shared memory of 1024 MB (for iGPU exclusively)

Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider

Expansion Slots: 1 x PCIe 3.0/2.0 x16 (x16 mode)

2 x PCIe 2.0 x1

Storage: Intel® H110 Chipset:

4 x SATA 6Gb/s port(s), gray

Intel® Rapid Storage Technology supports*2

LAN: Realtek® RTL8111H

Audio: Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *3

- Supports : Jack-detection, Front Panel Jack-retasking

Audio Feature :

- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio

- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

USB Ports:

Intel® H110 chipset:

4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board)

Intel® H110 chipset:

6 x USB 2.0/1.1 port(s) (4 at back panel, black, 2 at mid-board)

Operating System Support: Windows 10

Windows 8.1

Windows 7 *4

Back I/O Ports: 1 x PS/2 keyboard (purple)

1 x PS/2 mouse (green)

1 x D-Sub

1 x LAN (RJ45) port(s)

2 x USB 3.1 Gen 1 (blue)

4 x USB 2.0

3 x Audio jack(s)

Internal I/O Ports:1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)

1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

1 x LPT header

1 x COM port(s) connector(s)

4 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

1 x Chassis Fan connector(s) (1 x 4 -pin)

1 x 24-pin EATX Power connector(s)

1 x 4-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x Internal speaker connector(s)

1 x System panel(s)

1 x 14-1 pin TPM connector

1 x Chassis intrusion header

DiGiShi quarantees the quality of this products and it is secured from the approved source in the local markets in Syria
